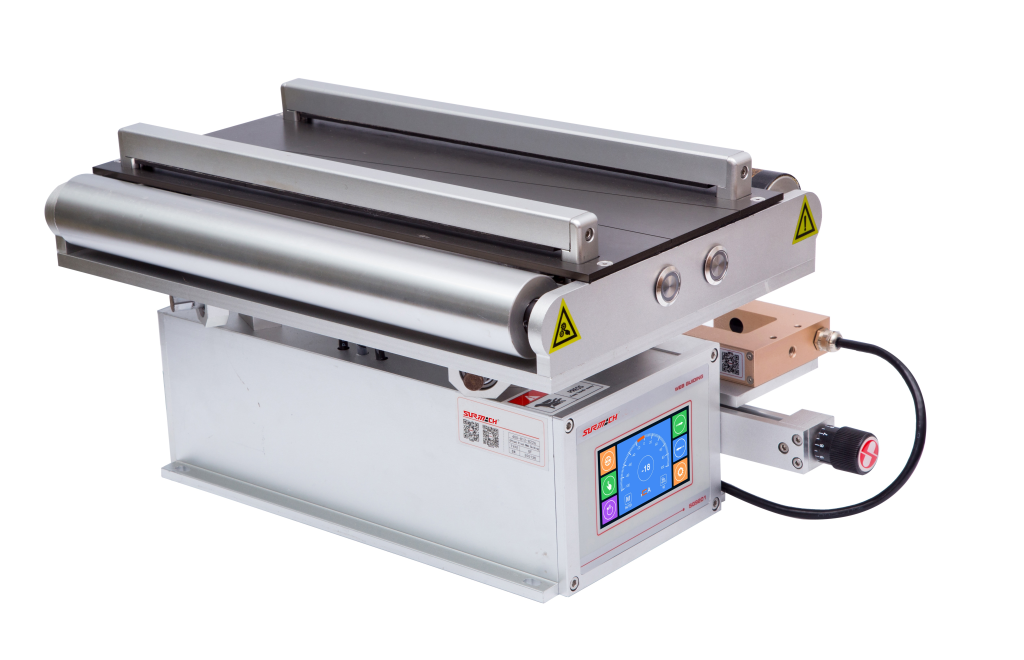

Web material web-guiding

The high-speed, high-precision, and highly efficient automated processing of coil materials places increasingly stringent demands on the control of their lateral positioning. Equipping the system with a high-performance automatic web‑centering mechanism is key to boosting production capacity and improving yield. During unwinding, intermediate handling, and rewinding, coils inevitably experience lateral displacement (deviation). Therefore, a web‑centering system can be installed at any of these three stages as needed to ensure the coil passes through designated positions with exact accuracy. The web‑centering system is an automated control system comprising a controller, edge‑ or line‑sensing sensors, an electric actuator, and a correction mechanism. The sensing device detects the relative position of the coil's edge, a reference line, or a color mark, converting this information into an electrical signal that is sent to the controller. The controller compares this signal with the setpoint; based on the deviation, it outputs a proportionally adjusted signal to the electric actuator, which immediately initiates corrective action.

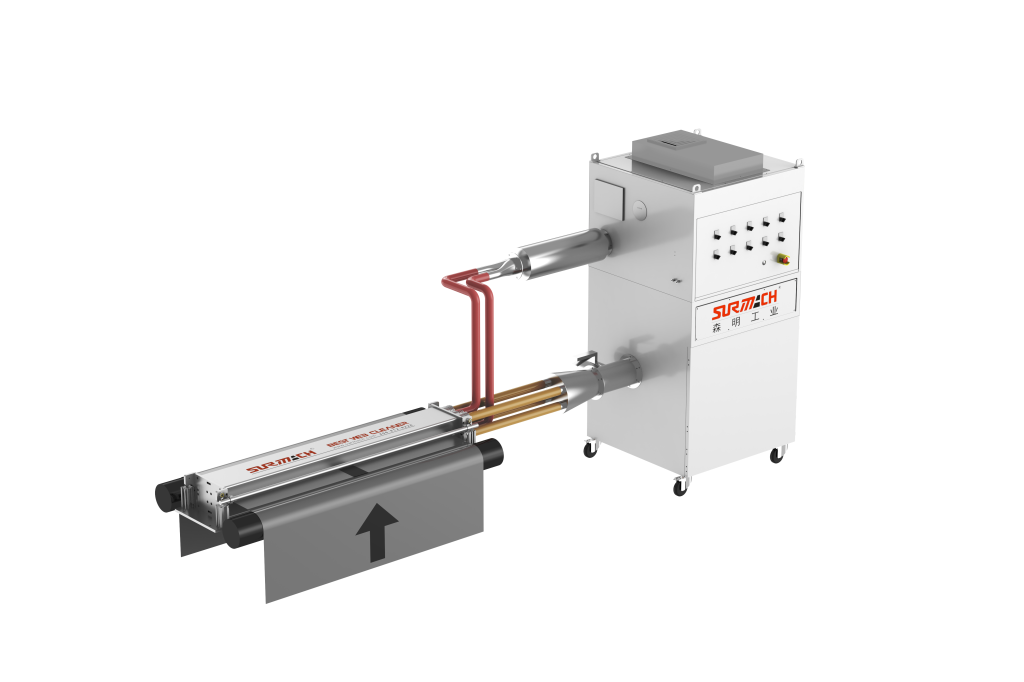

Micron-level dust removal

During the production, processing, and transportation of materials and products, static electricity on material surfaces can cause them to attract or accumulate microscopic dust, thereby affecting product quality. As cleanliness requirements continue to rise across various industries, the removal of minute impurities and particulates has become increasingly critical. Non-contact surface cleaning offers advantages such as contactless operation, compact equipment, low cost, minimal consumable usage, and ease of implementation, leading to rapid growth in numerous sectors in recent years. Senming Industrial's comprehensive range of rolled materials, sheet materials, edge‑trimming solutions, and custom‑shaped components is extensively deployed in China's high‑tech industries—including lithium batteries, photovoltaics, hydrogen energy, display panels, chips, semiconductors, printed circuit boards, and optical assemblies—as well as in traditional sectors like specialty paper, functional films, printing and packaging, high‑end coating, and automotive leather.

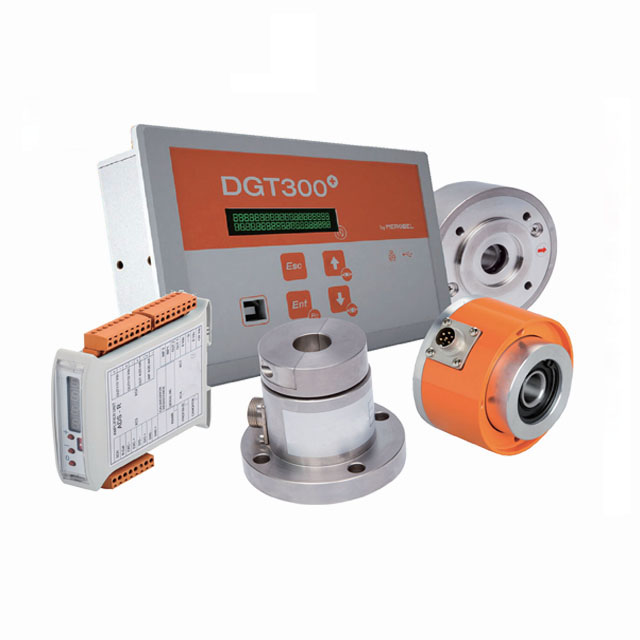

Tension Control

The tension sensor employs the strain‑gauge principle to measure web tension, delivering an output signal that features excellent linearity and rapid response. Robust and durable, it maintains high sensitivity even at low tension levels and operates reliably across a wide temperature range without requiring temperature compensation. Our full product line offers multiple specifications, sizes, and mounting options, and is widely used in various web‑handling equipment and production lines, including printing presses, slitting machines, rewinders, coating machines, and more. All of our tension sensors utilize strain‑gauge technology; each unit incorporates a Wheatstone bridge composed of four 350‑ohm strain gauges, significantly enhancing measurement accuracy and linearity. This makes them the ideal choice for high‑speed, high‑precision tension measurement.
