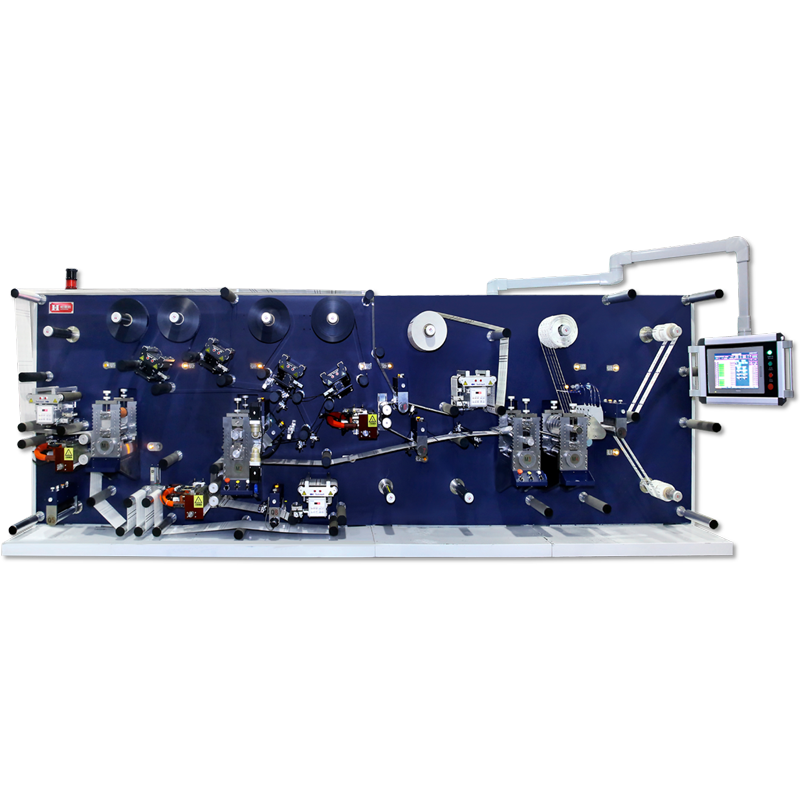

HIGH SPEED RFID LABEL CONVERTING MACHINE

Equipment for dry Inlay cutting, transfer, composite, label shape die cutting; Used for wet Inlay transfer, compound, label shape die cutting; The equipment has auxiliary shaft feeding automatic correction function, glue coating function, and can expand Inlay online data reading function, defective product marking function, sheet material collection function. Stable production speed up to 100m/min, easy to operate, input data automatically matching, 1 person can operate. RFID tag high-speed composite die cutting machine is widely used in clothing, electronics, medical and health, logistics and other industries of all kinds of ticket cards, clothing tags and other products die cutting processing.

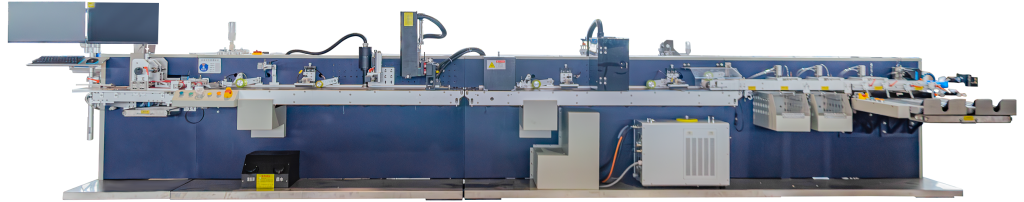

HIGH-SPEED RFID LABEL CODE WRITING &CODDING TESTING MACHINE

Equipment driven by high precision reducer + servo motor, high positioning accuracy, fast speed. The maximum running speed of the platform is 200m/min, and the maximum running speed is 100m/min after the function is enabled. The detection speed is 20pcs/s, the write code speed is 15pcs/s, and the output is 54000 pieces per hour. The equipment supports different specifications of tags to write codes at the same time (such as L and XL can be written at the same time), back-end products support classified collection.
Main application: WRITING and testing of RFID tag program, involving various industries such as electronics, logistics, clothing, ETC traffic, anti-counterfeiting, traceability and other industries.

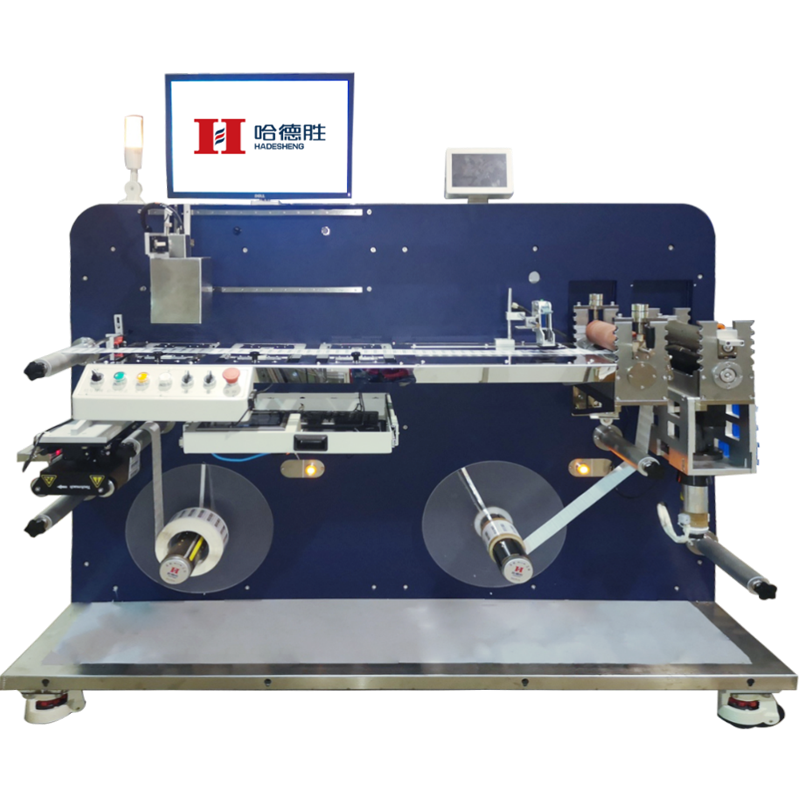

RFID标签高速读写检测机

Main applications:
RFID coil label program writing and detection, independent development of the control system, the function can be directed development. The equipment has intermittent feeding mode and continuous feeding mode, according to the different reading and writing mode can be flexibly switched, the reserved inkjet station, NG detection station, according to the needs of customers can be flexibly increased or decreased. It involves various industries such as electronics, packaging, daily chemical, medicine, food, stationery, logistics, clothing and so on.
